Semi Automatic Recycling Pulp Tray Machine With Sun Drying / 1200pcs / H

Semi Automatic Recycling Paper Egg Tray Pulp Molding Machinery with Sun Drying / 1200pcs/h

Specifications:

The Items Must Be Prepared before Installation

Descriptions:

• This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
• The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
• Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
• international brand electrical control parts, FESTO & SMC pneumatic control parts.
• Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
• There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.

Working theory:

• The worker or track carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor ;
• The conveyor pours down the raw material into the hydrapulper mixing with certain water;
• The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
• The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
• Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. Then the wet products are shaped on the working platform;
• Finally, worker puts out the shaped products, takes them to the drying yard and makes them drying under the shine.

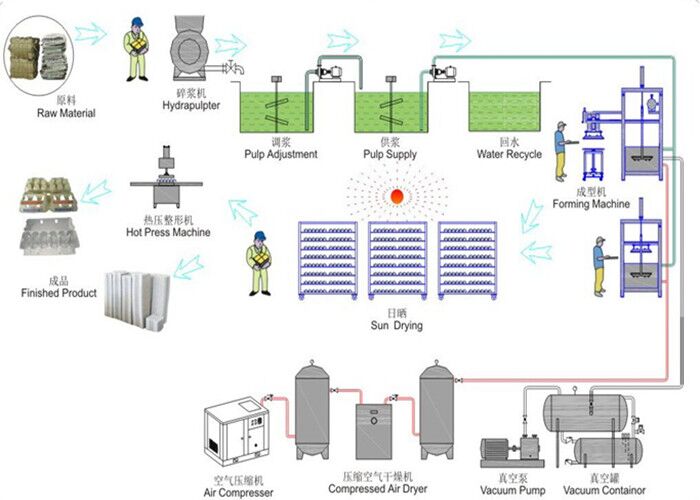

Schematic Diagram:

Production Information and Our Warranty:

• Status: Brand New
• Product Type: Egg Tray Machine
• Processing Type: Pulp Molding Machine
• Place of origin: Guangdong, China
• Brand: NANYA
• Model Type: ES1200-C
• Voltage: 220V - 450V
• Approval: CE, TUV,SGS, ISO9001
• Warranty: 12 Months
• After-Sale Service: Engineers available to service machinery overseas

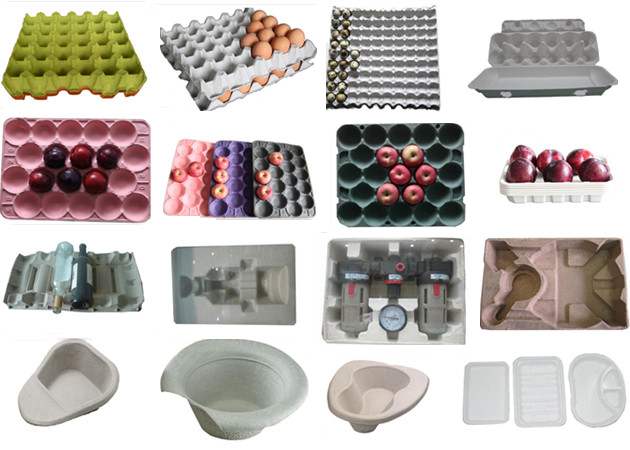

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…

Competitive Advantages:

• TUV Supplier Assessment Certificate;SGS Supplier Assessment Certificate;CE Certificate
• Main accessories are adopted the international renowned brands. PLC. touch screen and servo motor of our machines are adopted international brand brand; relays are form Omron and Schneider brand; switching devices are from LG brand; pneumatic components are from Germany Festo Brand Japan SMC brand or South Korea ARK Brand;
• We have the advanced testing methods ,test and inspect the new machine and make sure it reaches the standard requirement before delivery;
• Nanya is an integrated company. Apart from working on pulp molding machines, meanwhile, we also study and develop production technology, which guarantees our customers the production technology support and service;
• Technicians are available to be sent to install machine and train the workers for our customer. We have professional colleagues responsible for the after-sales service to reach customers’ expected capacity and minimize our their operating cost.
