Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery

Name: Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine Machinery
Brand: Nanya
Price: 1 USD

Quality Automatic Rotary Type Recycle Paper Pulp Molding Egg Tray Machine / Machinery for sale

Brand Name : Nanya

Model Number : ER5000-A

Certification : CE/TUV/SGS/ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, Cash or Western Union

Supply Ability : 20 Sets Per Month

Delivery Time : 45~75 days

Packaging Details : Export Standard Packing

Product Name : Pulp Molding Machine

Capacity : 5000Pcs / H

Processing Material : Waste Paper / Wood pulp / bagasse pulp / Bamboo pulp / Straw pulp

Forming Type : Vacuum Suction

After-sales Service Provided : Engineers Available to Service Overseas

Voltage : 220 V - 450 V

Standard : CE/TUV/SGS/ISO9001

Automation : Fully-automatic

Contact Now

Automatic Rotary Type Egg Carton / Fruit Tray Making Machine 5000Pcs /H 8 Sides

Specifications:

Model Type	ER5000-A
Capacity	5000 pcs/hour
Workshop Requirement	700 m²
Electricity Consumption	~200 kw
Electricity Installed	300 kw
Material Consumption	320~350 kg/h
Water Consumption	1000~1200 kg/h
Worker Requirement	4~5 persons
Container Requirement for Shipment	8 x 40 HQ
Forming Machine (Rotary Type)	Rotary type with 8 plates. Each for 5 pcs / time
Drying Line	42x3.0x3.6 m 1-Layer
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Fuel Consumption (One Item Selectable)

Natural gas	100~110 m³/h
LPG	35~39 m³/h
Diesel	85~92 kg/h
Heavy Oil	88~92 kg/h
Steam	1.7~1.9 ton/h
Wood	350~390 kg/h
Coal	220~ 250 kg/h

Descriptions:

It’s a fully automatic egg tray production line
Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
Products come out automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
international brand electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

Production Information and Our Warranty:

Status: Brand New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong, China
Brand: NANYA
Model Type: ER5000-A
Voltage: 220V - 450V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

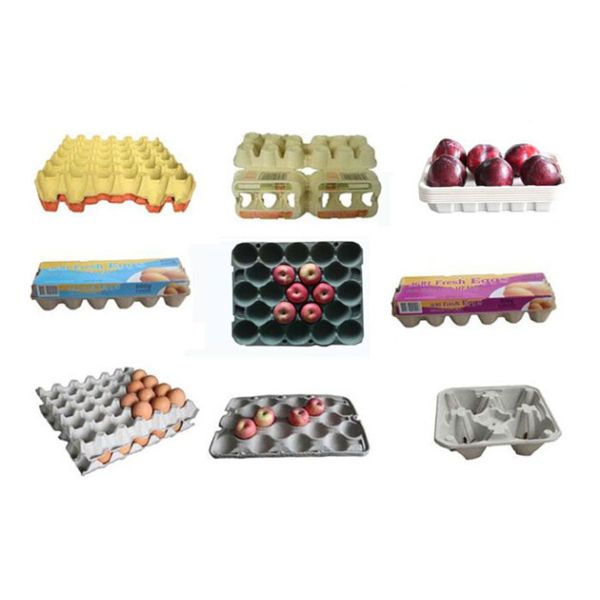

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…

Competitive Advantages:

Fully automatic production line
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 30 years experience in this field, Chinese reliable supplier, supported by the government and universities.
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
