Pulp Molded Insert Shock-Proof Packaging Tray Molding Machinery
Technical Data
| Product Name |
Industrial Tray Making Machine |
| Machine Type |
CY010 |
| Raw Material |
Recycle paper |
| Forming Method |
Reciprocating Moulding |
| Mould Plate Size |
2400*800mm |
| Capacity |
120~150kg/hour/forming machine |
| Product Height |
<=160mm |
| Application |
Electronic Package Pulp Tray |
| Dryer type |
Single layer dryer |
| Fuel type for the dryer |
Natural gas/ diesel/ LPG/steam/coal... |
|
The above specification is for reference only, for different capacity, we'll provide customized solution based on specific requirements.
|
Introduction
1. This pulp tray production line is for making big size industrial trays or high capacity pulp trays.
2. The mold platen size is 800*600mm* 2 working stations, match a single layer dryer or dry under sunshine. The capacity of each forming machine is around 120~150kg/hour.It can mactch multiple forming machines in the production line.
3. Forming machine control: PLC and touch screen controlled.
4. The fuel for the dryer: Natural gas/ diesel/ LPG/steam/coal...
5. The main electronic parts brand: international brand; The main Pneumatic parts brand: FESTO or SMC
How This Production Line Works
| Pulping System |
The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine. |
| Forming System |
With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically. |
| Drying System |
Metal drying line / sunshine drying / drying room |
| Hot press system |
After dried, the products will be hot pressed to get a better shape and smoother surface. |

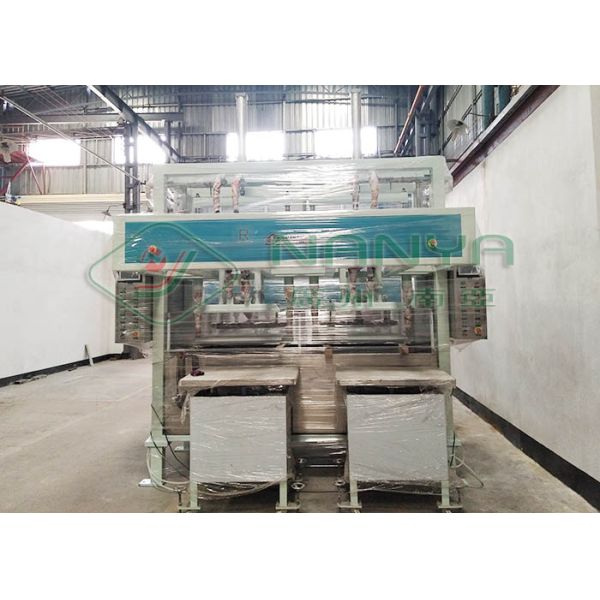

Forming Machine Picture

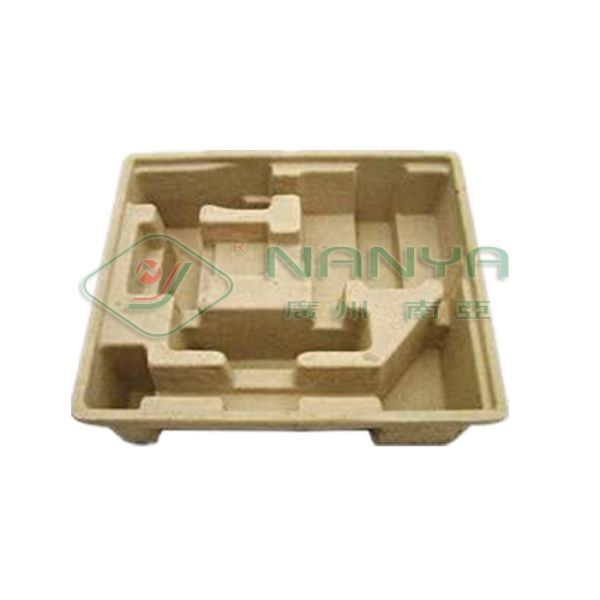

Finished Products
1. Electronic Package Pulp Tray, like for TV, cooker, battery, air conditioner, car parts and other electrical items.
2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup
Business Terms
| MOQ |
One set for our own existing designs. |
| Model Choice |
According to your requirement (like size and capacity), our engineer will help to make the model selection accordingly. And we also can provide the professional plant layout design for customers. |
| Payment Terms |
T/T, L/C, D/P, D/A, Western Union, Money Gram, etc. |
| Delivery Time |
Around 90 working days from the payment date. |
| Assembly &commissioning |
We will assign our engineer for assembly and commissioning. |
NANYA Advantages
1. Provide the professional technical support for designing plant layout and recommending suitable machine.
2. Provide the whole production line, installing, commissioning and staff training.
3. Provide one year warranty and lifetime maintenance.
4. Provide one year spare parts free, and a large stock of components and parts for emergency requirement.
5. Provide 24hours/7days online service.
